Description

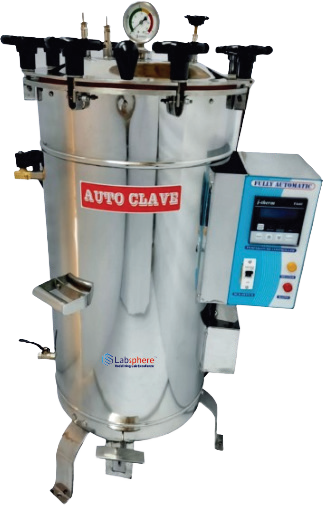

Vertical Autoclave Fully Automatic

The Vertical Autoclave Fully Automatic is engineered for precise and reliable sterilization using advanced steam-based technology. Designed with double-walled construction (SS 304), this autoclave ensures superior durability, heat retention, and operational safety.

It features a thick stainless-steel lid capable of handling pressure up to 22 PSI (121°C), making it ideal for sterilizing instruments, culture media, glassware, and laboratory equipment.

The system is equipped with a digital temperature controller, timer (0–99 min), and automatic air purging, ensuring consistent sterilization cycles. Once the set pressure is achieved, the autoclave automatically starts the sterilization process and releases steam after completion.

Safety is a priority with pressure gauge, safety valve, steam release valve, and low water level protection, preventing overheating and dry run conditions.

Additionally, it includes a perforated SS 304 basket and foot-lifting lid arrangement, making it user-friendly and efficient for daily operations.

Key Features

• Double walled construction, inner and outer body made of SS 304
• Lid made of thick stainless steel
• Pressure up to 22 PSI (121°C)
• Fully automatic operation with digital temperature controller
• Automatic air purging system
• Digital timer range: 0 to 99 minutes
• Automatic sterilization cycle start after pressure achievement
• Automatic steam release after cycle completion
• Equipped with pressure gauge and safety valves
• Low water level protection to prevent burn out
• Foot lifting arrangement for lid
• Supplied with SS 304 perforated basket


  Technical Specification Table

  Code	Capacity (Litres)	Inner Working Size (Inch)	Pack Size	HSN No.
  LS19-1001	22	10 Dia x 18 ht	1	84.19.2010
  LS19-1002	35	12 Dia x 20 ht	1	84.19.2010
  LS19-1003	52	14 Dia x 22 ht	1	84.19.2010
  LS19-1004	90	16 Dia x 24 ht	1	84.19.2010
  LS19-1005	95	18 Dia x 24 ht	1	84.19.2010
  LS19-1006	120	18 Dia x 30 ht	1	84.19.2010
  LS19-1007	175	22 Dia x 30 ht	1	84.19.2010
  LS19-1008	200	22 Dia x 36 ht	1	84.19.2010
